Detailed specification parameter table for fiberglass diagonal flow pipeline fan
Time:2024-01-18 vesits:466



FRP diagonal flow duct fan description: Compared with centrifugal fans and axial flow fans, diagonal flow duct fans have a unique linear structure and aerodynamic parameters between the two.
Comparison diagram between fiberglass diagonal flow duct fans and other fans

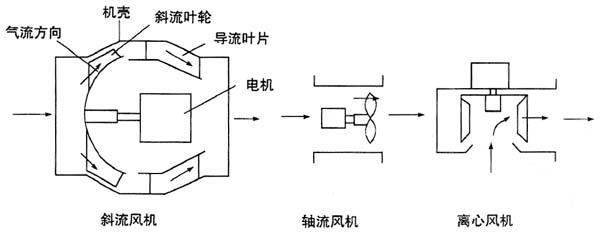

Comparison of air flow conditions of basic structures

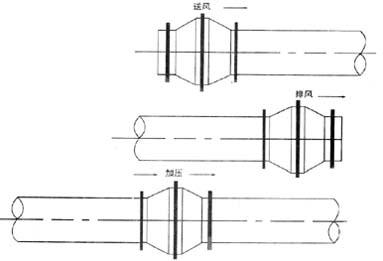

The inclined duct fan is most suitable for use as a duct pressurized fan, and can also be used as a supply fan or exhaust fan.

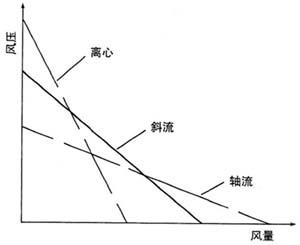

Comparison of aerodynamic characteristic curves

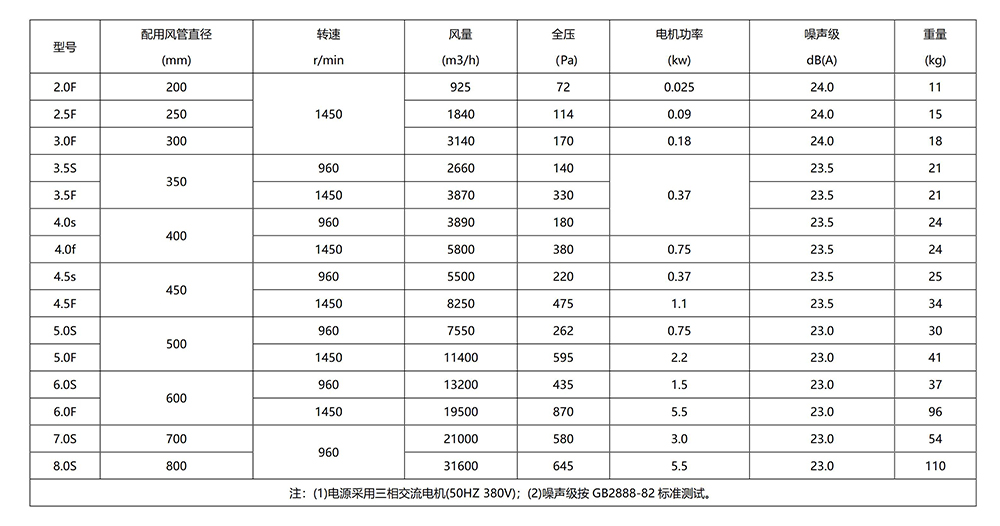

FRP diagonal flow duct fan performance parameter table

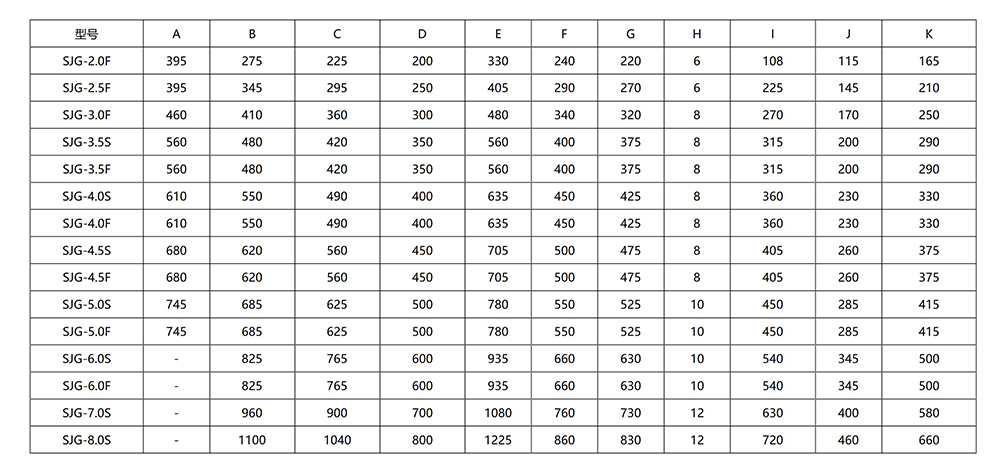

FRP diagonal flow duct fan appearance and installation dimension table

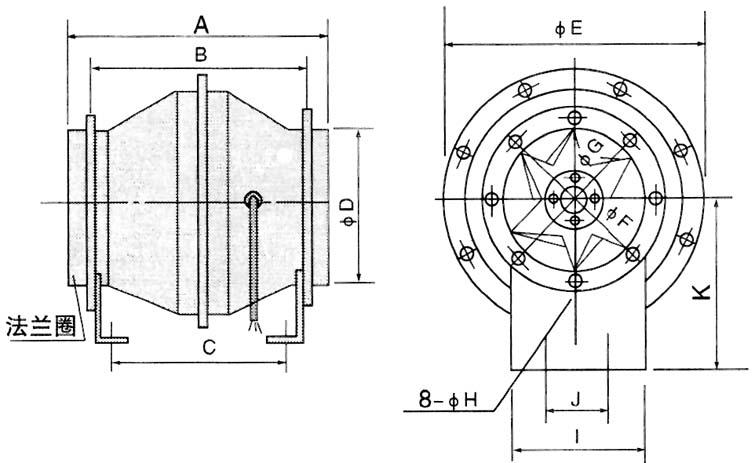

Fiberglass diagonal flow duct fan outline drawing

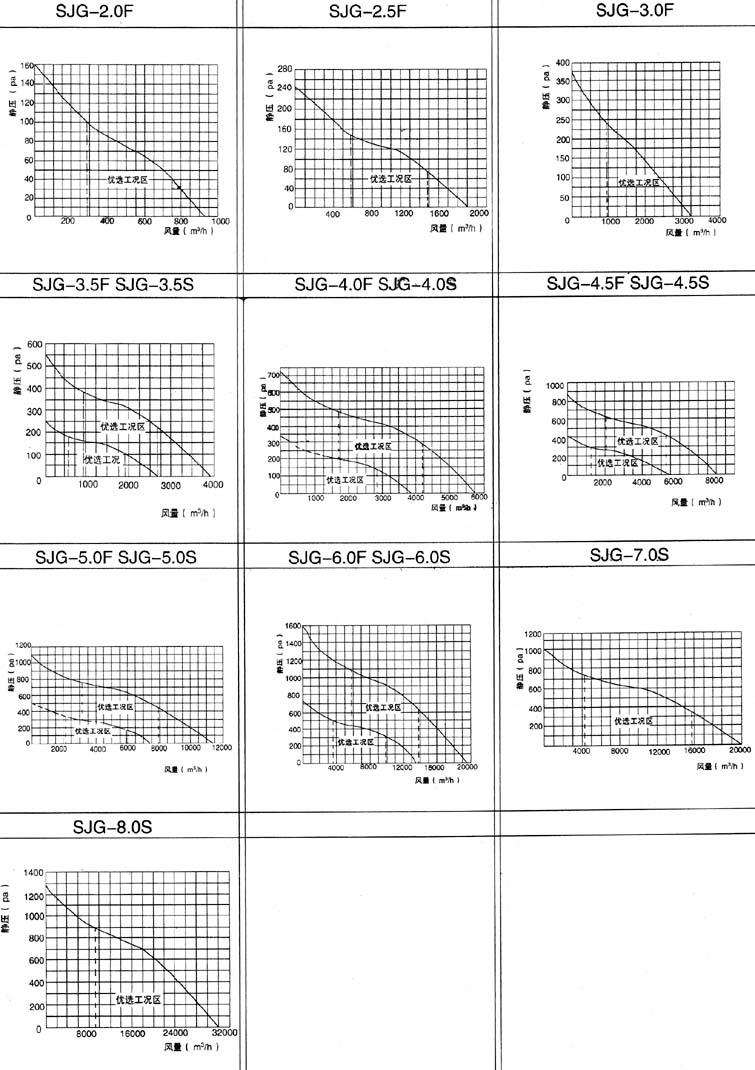

  FRP diagonal flow duct fan characteristic curve table
